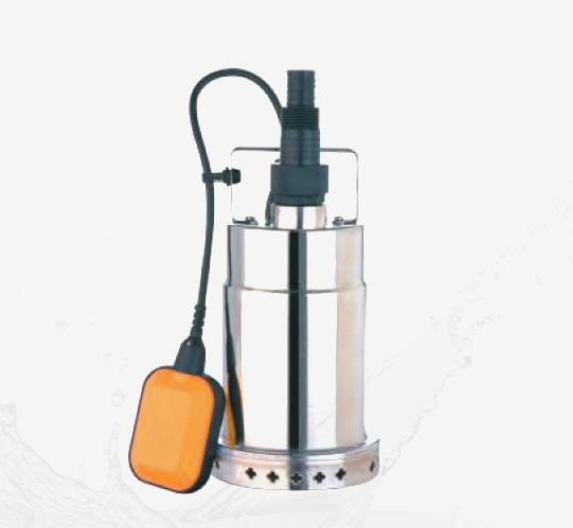

Submersible pumps QS clean water Series
Submersible pumps QS clean water SeriesCONSTRUCT
PUMP
Pump Body: Stainless Steel AISI 304
Impeller: Stainless Steel AISI 304
Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stainless Steel
Insulation: Class F
Protection: IP68
| TYPE | QS400 | QS550 | QS750 |
| Rated power | 400W | 550W | 750W |
| V&Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz |
| Max.pump rate | 7500L/h | 8500L/h | 11000L/h |
| Max.height | 6.5m | 7.5m | 8.5m |
| Max.deepth | 5m | 7m | 7m |
| Max.grain size | 5mm | 5mm | 5mm |
| Dia.of pipe | 1"G1"11/4"G11/2" | 1"G1"11/4"G11/2" | 1"G1"11/4"G11/2" |
| Cable | HO5RN-F 3G0.75mm | HO5RN-F 3G1.0mm | HO5RN-F 3G1.0mm |
| Length of cable | 10m | 10m | 10m |
| Package size | 22*16*31cm | 22*16*31cm | 22*16*31cm |
| Measurement | 46*34*33cm/4pcs | 46*34*33cm/4pcs | 46*34*33cm/4pcs |
| Weight approx | 19.5kg/21kg | 21kg/22.5kg | 22kg/23.5kg |
| QTY/20CTN | 2180pcs | 2180pcs | 2180pcs |
