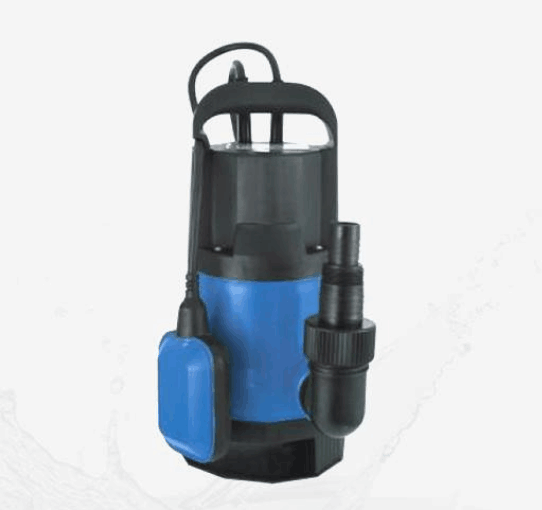

Submersible pumps SPD Dirty water Series
Submersible pumps SPD Dirty water SeriesCONSTRUCT
PUMP
Pump Body:PlaStic
Impeller: Plastic PPO
Mechanical Seal: Carbon / Ceramic / Stainless Steel
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Stainless Steel
Insulation: Class F
Protection: IP68
| type | SPD400 | SPD500 | SPD750 |
| Rated power | 400W | 500W | 750W |
| V&Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz | 230V/50Hz 115V/60Hz |
| Max.pump rate | 7000l/h | 10000l/h | 15000l/h |
| Max.height | 8m | 8m | 8m |
| Max.depth | 7m | 7m | 7m |
| Max.grain size | 5mm | 5mm | 5mm |
| Dia.of pipe | 1"G1"1/4"G1/2"/G13/4" | 1"G1"1/4"G1/2"/G13/4" | 1"G1"1/4"G1/2"/G13/4" |
| Cable | H05RN-F3G0.75mm? | H05RN-F3G0.75mm? | H05RN-F3G0.75mm? |
| Length of cable | 10m | 10m | 10m |
| Package size | 22*16*33cm | 22*16*33cm | 22*16*33cm |
| Measurement | 47*34*35cm/4pcs | 47*34*35cm/4pcs | 47*34*35cm/4pcs |
| Weight approx | 17kg/18.5kg | 18kg/19.5kg | 20kg/21.5kg |
| QTY/20CTN | 2000pcs | 2000pcs | 2000pcs |
