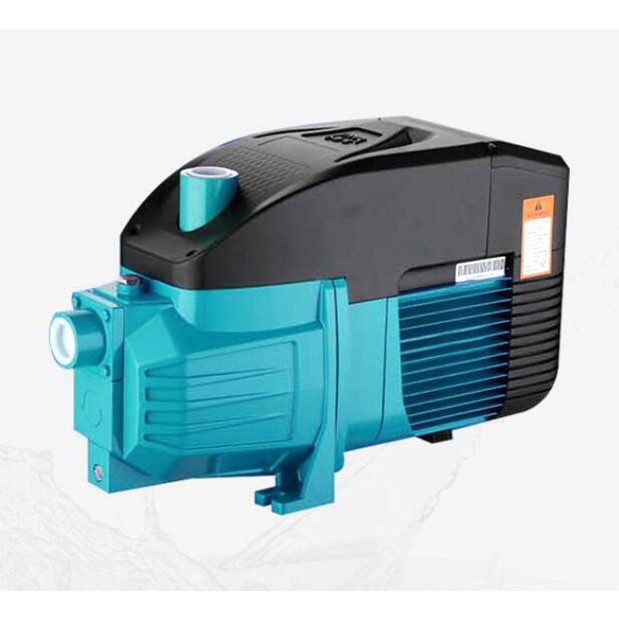

JET AUTO pumps JET-100C AU Series

JET  AUTO pumps JET-100C AU Series

WORKING CONDITION

1、Ambient temperature Max. + 40%;
2、Liquid tempearature from 0 ~+90℃;
3、Liquid PH value is between 6.5-8.5;
4、Particle volume ratio not beyond 0.1 % in the liquid,the size max.0.2mm;
5、50Hz, 220V, Voltage tolerance ±10%。

PUMP

Pump Body:Cast Iron

Impeller: Brass / Techno-polymer
Mechanical Seal: Carbon / Ceramic / Stainless Steel
Nozzle: P.P.O / Aluminum
JET Pipe: P.P.O / Aluminum
Diffuser: P.P.O / Aluminum / Cast Iron

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum and Plastic
Shaft: Carbon Steel / Stainless Steel
Insulation:  Class F
Protection: IP54
Cooling: External Ventilation
