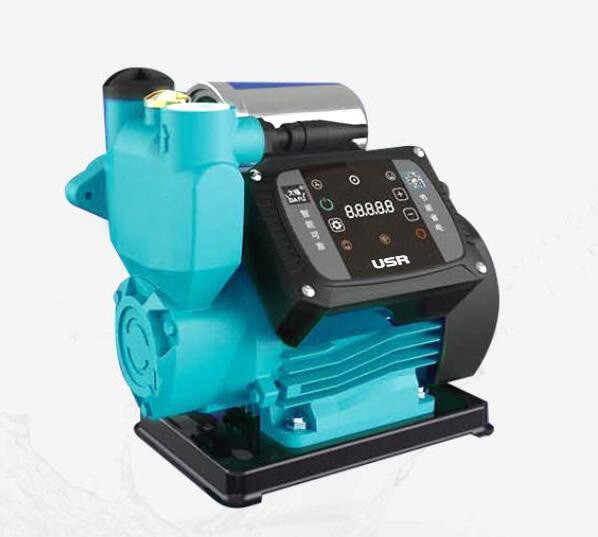

DWM-ZH Intelligent frequency conversion self priming vortex pump

• DWM-ZH Intelligent frequency conversion self priming vortex pump

WORKING CONDITION

1、Ambient temperature Max. + 40%;
2、Liquid tempearature from 0 ~+90℃;
3、Liquid PH value is between 6.5-8.5;
4、Particle volume ratio not beyond 0.1 % in the liquid,the size max.0.2mm;
5、50Hz, 220V, Voltage tolerance ±10%。

CONSTRUCT

PUMP

Pump Body: Cast Iron
Impeller: Brass
Mechanical Seal: Carbon / Ceramic / Stainless Steel

MOTOR

Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
