Booster pumps CDL pumps
Booster pumps CDL pumps
Summary

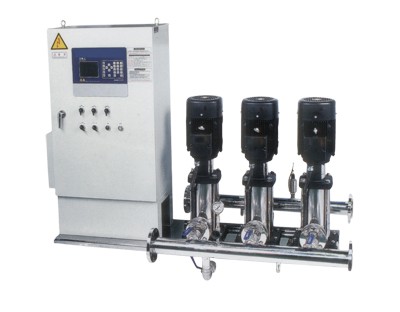

PID-CDL series constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controlling cabinet and more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand. The pressure of water supply net can be kept constant. The whole water supply system can be at best effective, energy saving, perfect status. There are two ways of water supply, they are frequency convention water supply and pressure water supply. Frequency water supply is automatically adjust the rotation speed of one pump or run/stop one or more pumps, which is the best water supply way to keep the water supply net to be stable. It is easy to use.
Features
1.Solve the low pressure problem: Use the constant pressure, frequency conversion water supply system to keep the pressure stable of the whole building.
2.To avoid the pollution of the tank on the top of the roof. It takes place the traditional roof tank water supply way, erase the source of water pollution.
3.Deduce the building cost, enlarge the square: It erase the traditional roof tank, less the force of the building, simple structure, cost deduced.
4.Energy saving, deduce the space: It can save energy more than 30%, compared to normal water supply equipment. It occupy little space, easy to install, shorten working period.
5.High quality, PC controls: Invented by us, have multi-function, can supply high standard precise control. It is arrived to the advance level in the world.
Main application
Residential water supply: High building, residential area, villa, etc.
Public places: Hospital, university, gymnasium, golf course, airport, etc.
Commercial building: Hotel, office building, department store, large-scale sauna center.
Irrigation: Park, playing round, garden, farm, etc.
Manufacturing industry: Manufacturing, lavation equipment, food industry, factory, etc.
Working Condition
Convey liquid: cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
Medium temperature: Normal temperature type -15℃～+70℃; Hot water type + 70℃～+ 120℃;
Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
The equipment should be placed in no vibration place and in the place where it is easy to check.
Ambient temperature: Max +45 º C, ventilated
<td nowrap="" width="115" style="font-size: 12px; border-width: medium 1px 1px; border-top-style: none; border-right-color: windowtext; padding: 0px 7px; border-top-color: initi
Power | Power | Tank | Flow | Head |
kw | L | m3/h | m | |
2CDL | ||||
2CDL2 | ||||
2CDL2-30 | 0.37 | 50 | 7 | 27 |
2CDL2-50 | 0.55 | 50 | 7 | 45 |
2CDL2-70 | 0.75 | 50 | 7 | 63 |
2CDL2-110 | 1.1 | 50 | 7 | 98 |
2CDL2-150 | 1.5 | 100/16 | 7 | 134 |
2CDL2-180 | 2.2 | 100/16 | 7 | 161 |
2CDL2-220 | 2.2 | 100/16 | 7 | 197 |
2CDL4 | ||||
2CDL4-30 | 0.55 | 100 | 7 | 28 |
2CDL4-40 | 0.75 | 100 | 7 | 38 |
2CDL4-60 | 1.1 | 100 | 7 | 56 |
2CDL4-80 | 1.5 | 100 | 7 | 74 |
2CDL4-100 | 2.2 | 100/16 | 7 | 92 |
2CDL4-120 | 2.2 | 100/16 | 7 | 114 |
2CDL4-140 | 3 | 100/16 | 7 | 136 |
2CDL4-160 | 3 | 100/16 | 7 | 152 |
2CDL4-190 | 4 | 100/16 | 7 | 185 |
2CDL4-220 | 4 | 100/16 | 7 | 218 |
2CDL8 | ||||
2CDL8-20 | 0.75 | 100 | 24 | 19 |
2CDL8-30 | 1.1 | 100 | 24 | 30 |
2CDL8-40 | 1.5 | 100 | 24 | 41 |
2CDL8-50 | 2.2 | 100 | 24 | 52 |
2CDL8-60 | 2.2 | 100 | 24 | 62 |
2CDL8-80 | 3 | 100/16 | 24 | 83 |
2CDL8-100 | 4 | 100/16 | 24 | 104 |
2CDL8-120 | 4 | 100/16 | 24 | 124 |
2CDL8-140 | 5.5 | 100/16 | 24 | 145
