Pond pumps JTP series 1

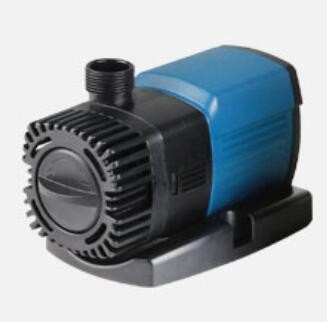

JTP series 1 variable frequency water pump
●The design is novel and generous, adopting frequency conversion technology; low power, large flow, high lift, ultra-quiet and amphibious;
●It adopts ceramic shaft, which is resistant to abrasion and rust. Long service life, light and sea water can be used, and it does not contain copper elements;
● This product is free of tools and disassembly, easy to clean;
●The outlet is multi-stage, suitable for a variety of pipe diameter connections;
● There is a stall protection function (that is, the water will automatically cut off immediately after the water leaves are stuck).
Model | Input power | Frequency | Power | Max. Head | Max. Flow | pump high | Cable length | New weight | Dimensions |
JTP-1800 | DC 12V/24V 110V/240V | 50Hz/60Hz | 11W | 2.2m | 1800L/h | 54mm | 2.5m | 2kg | 182x115x110mm~50mm |
JTP-2800 | DC 12V/24V 110V/240V | 50Hz/60Hz | 18W | 3.0m | 2800L/h | 54mm | 2.5m | 2kg | 182x115x110mm~50mm |
JTP-3800 | DC 12V/24V 110V/240V | 50Hz/60Hz | 25W | 3.8m | 3800L/h | 54mm | 2.5m | 2kg | 182x115x110mm~50mm |
JTP-4800 | DC 12V/24V 110V/240V | 50Hz/60Hz | 32W | 4.5m | 4800L/h | 54mm | 2.5m | 2kg | 182x115x110mm~50mm |
JTP-5800 | DC 12V/24V 110V/240V | 50Hz/60Hz | 38W | 5.2m | 5800L/h | 54mm | 2.5m | 2kg | 182x115x110mm~50mm |
JTP-2000 | 110V/220V/240V | 50Hz/60Hz | 10W | 1.6m | 2000L/h | 27mm | 1.8m | 1.6kg | 159x99x104mm~50mm |
JTP-2500 | 110V/220V/240V | 50Hz/60Hz | 18W | 2.6m | 2500L/h | 27mm | 1.8m | 1.6kg | 159x99x104mm~50mm |
JTP-3000 | 110V/220V/240V | 50Hz/60Hz | 26W | 3.6m | 3000L/h | 27mm | 1.8m | 1.6kg | 159x99x104mm~50mm |
