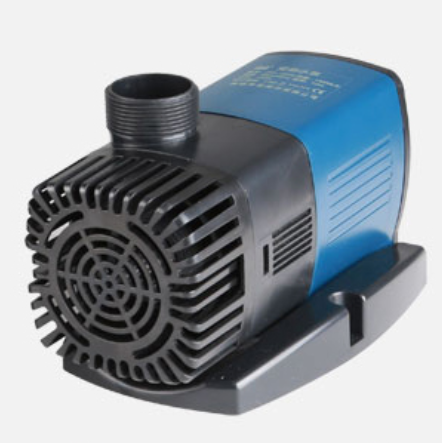

JTP series 2 variable frequency water pump


●The design is novel and generous, adopting frequency conversion technology; low power, large flow, high lift, ultra-quiet and amphibious;

●It adopts ceramic shaft, which is resistant to abrasion and rust. Long service life, light and sea water can be used, and it does not contain copper elements;

● This product is free of tools and disassembly, easy to clean;

●The outlet is multi-stage, suitable for a variety of pipe diameter connections;

● There is a stall protection function (that is, the water will automatically cut off immediately after the water leaves are stuck).


ModelInput VoltageFrequencyPowerMax.HeadMax.FlowPump HighCable LengthWeightDimension
JTP-4000110V/220V/240V50Hz/60Hz25W3.2m4000L/h65mm2.5m2.5kg186x123x137mm-50mm
JTP-5000110V/220V/240V50Hz/60Hz30W3.6m5000L/h65mm2.5m2.5kg186x123x137mm-50mm
JTP-6000110V/220V/240V50Hz/60Hz40W4.0m6000L/h65mm2.5m2.5kg186x123x137mm-50mm
JTP-7000110V/220V/240V50Hz/60Hz50W4.4m7000L/h65mm5m2.5kg186x123x137mm-50mm
JTP-8000110V/220V/240V50Hz/60Hz60W4.8m8000L/h65mm5m2.5kg186x123x137mm-50mm
JTP-9000110V/220V/240V50Hz/60Hz70W5.2m9000L/h65mm5m2.5kg186x123x137mm-50mm
JTP-10000110V/220V/240V50Hz/60Hz80W6.0m1000L/h72mm5m3.5kg228x142x138mm-50mm
JTP-12000110V/220V/240V50Hz/60Hz100W6.5m1200L/h72mm5m3.5kg228x142x138mm-50mm
JTP-14000110V/220V/240V50Hz/60Hz120W7.0m1400L/h72mm5m3.5kg228x142x138mm-50mm
JTP-16000110V/220V/240V50Hz/60Hz140W7.5m1600L/h72mm5m3.5kg228x142x138mm-50mm
