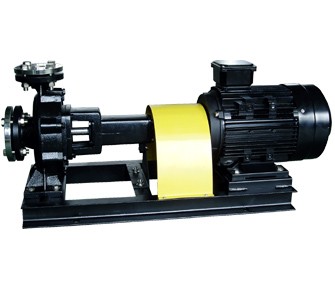

ISR Industrial PUMPS

MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
Motors require an adequate external motor protector, and connections
are to be according to current standards.
PROTECTION: IP 44.
INSULATION: class B (Class F).
WARRANTY: 1 year

<td rowspan="6" width="64" style="borde

Model	Speed	Flow	Head	Eff	Power		NPSHR	Outlet	Weight
					Axis Power	Motor Model Power
	(r/min)	(m3/h)	(m)	(%)	(kW)	(kW)	(m)	(mm)	(kg)
ISR50-32-125	2900	7.5	22	47	0.96	Y90L-2	2	50	32
		12.5	20	60	1.13	2.2kW	2
		15	18.5	60	1.26		2.5
	1450	3.8	5.4	43	0.13	Y801-4	2
		6.3	5	54	0.16	0.55kW	2
		7.5	4.6	55	0.17		2.5
ISR50-32-125A	2900	6.7	17.5	45	0.71	Y90S-2	2	50	31
		11.2	16	58	0.84	1.5kW	2
		13.5	14.7	58	0.93		2.5
	1450	3.4	4.3	41	0.1	Y801-4	2
		5.6	4	52	0.12	0.55kW	2
		6.7	3.7	53	0.13		2.5
ISR50-32-160	2900	7.5	34.3	44	1.59	Y100L-2	2	50	37
		12.5	32	54	2.02	3kW	2
		15	29.6	56	2.16		2.5
	1450	3.8	8.5	35	0.25	Y801-4	2
		6.3	8	48	0.29	0.55kW	2
		7.5	7.5	49	0.31		2.5
ISR50-32 -160A	2900	7	30	42	1.36	Y90S-2	2	50	35.5
		11.7	28	52	1.71	2.2kW	2
		14	26	54	1.83		2.5
	1450	3.5	7.4	34	0.21	Y801-4	2
		5.9	7	45.5	0.25	0.55kW	2
		7	6.6	46	0.27		2.5
ISR50-32-160B	2900	6	25.8	40	1.05	Y90S-2	2	50	34
		10	23	50	1.25	1.5kW	2
		12	21	52	1.32		2.5
	1450	3	6.4	32	0.16	Y801-4	2
		5.4	6	42	0.21	0.55kW	2
		6.5	5.6	43	0.23		2.5
ISR50-32-200	2900	7.5	52.5	38	2.82	Y132S1-2	2	50	41
		12.5	50	48	3.54	5.5kW	2
		15	48	51	3.95		2.5
	1450	3.8	13.1	33	0.41	Y802-4	2
		, 6.3	12.5	42	0.51	0.75kW	2
		7.5	12	44	0.56		2.5
ISR50-32-200A	2900	7	45.3	37	2.33	Y112M-2	2	50	40
		11.7	44	46	3.05	4kW	2
		14	41.5	49.5	3.2		2.5
	1450	3.5	11.3	32	0.34	Y801-4	2
		5.9	11	40.5	0.44	0.55kW	2
		7	10.4	42.5	0.46		2.5
ISR50-32-200B	2900	6.5	39.6	36	1.95	Y100L-2	2	50	39
		10.8	37.5	45.5	2.42	3kW	2
		13	36	48.5	2.63		2.5
	1450	3.3	9.9	31	0.28	Y801-4	2
		5.4	9.5	39	0.36	0.55kW	2
		6.5	9.1	41.2	0.39		2.5
ISR50-32-250	2900	7.5	82	28.5	5.87	Y160M1-2	2	50	72
		12.5	80	38	7.16	11kW	2
		15	78.5	41	7.83		2.5
	1450	3.8	20.5	23	0.91	Y90L-4	2
		6.3	20	32	1.07	1.5kW	2
		7.5	19.5	35	1.14		2.5
ISR50-32-250A	2900	7	72	28	4.9	Y132S2-2	PREVIOUS：Industrial Pumps E Series NEXT：Pump Accessories Electronic Pressure SKD-1 INQUIRY WhatsApp: Email: Content: Captcha: Send  Reset RELATED PRODUCTS Industrial Pumps F Series Industrial Pumps E Series CATEGORIES Peripheral Pump Centrifugal pumps JET pump Self-priming pumps Submersible pumps Deep well Submersible pumps Vertical Multistage Centrifugal Horizontal Multistage Centrifuga Circulating pump Booster Pump Bilge Pumps Pond pumps Industrial Pumps Sanitary Pumps Pump Accessories LATEST NEWS 第八届上海国际泵管阀展 Sed mollis elementum lectus rh CONTACT US Contact: Inna Phone: 13616088678 E-mail: info@usgenerator.com Add: No.3 Pacific road, Qinxiyang Industry zone, Fuan City, Fujian province, China close Sale Inna close Scan the qr codeclose
